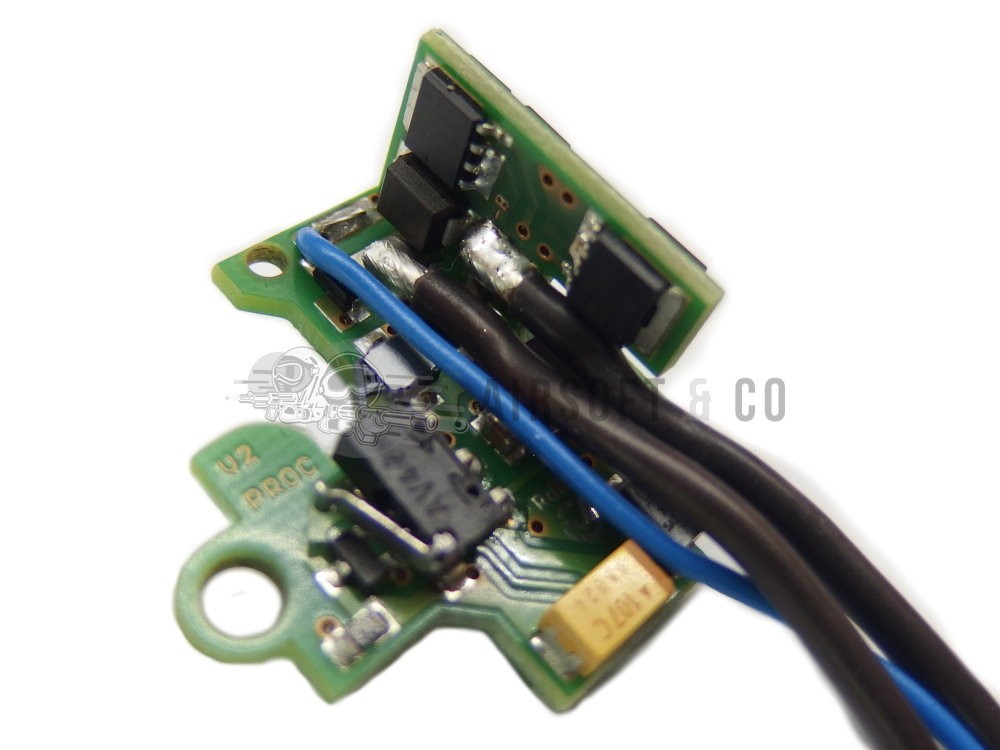

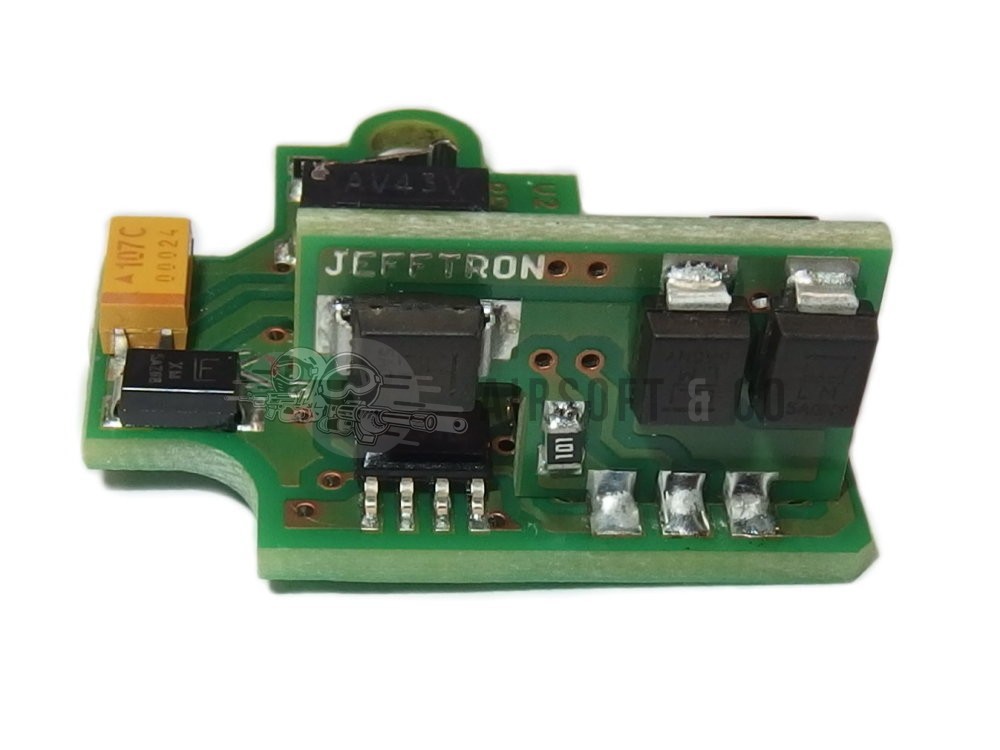

Processor Unit Gearbox V2 avec câblage

Professionally made program-controlled device with motor active braking, designed for airsoft electric guns (AEG).
It adds new ways of shooting, controls rate of fire, pre-cocking, active braking and low battery indication.
Device is fully integrated inside the gearbox v.2 instead of the original trigger contacts, compatible with Tokyo Marui standard.

Main parameters:
- Easy installation inside the gearbox version 2
- Presoldered wires allows faster and easier installation into the gun, it is long enough for all kind of weapons
- It preserves trigger mechanical lock in SAFE position
- Six new shooting modes, one of them is unique compared processor units located outside gearbox
- Adjustable burst (from factory are 3 shots, it can be changed in the range 1 - 10 shots)
- Smooth change rate of fire using PWM motor control
- Pre-cocking function for instant shot in SEMI fire
- Quick first shot at reduced rate of fire
- Mosfet with motor active braking
- Adjustable strength of active braking (can be also disabled)
- Low battery indication 2S and 3S Li-pol, 3S li-fe and 3S li-on
- Coated with lacquer, it protects device against water
- Monitoring current, voltage and temperature of Processor unit components
- Trigger gun is used for programming this device, motor vibrates as a feedback for user
- Programmed settings are stored in processor unit memory, so it doesn't loose changes after disconnection the battery

Fire modes:
- Safe - Semi – Auto (unchanged gun function)
- Safe - Semi - Burst/Auto
- Safe - Semi - Semi
- Safe - Semi - Burst
- Safe - Semi - Semi (delay between shots, motor vibration when it is ready to fire)
- Safe - Burst - Burst/Auto
- Safe - Semi/Burst - Burst/Auto (unique fire mode only in this drop-in processor unit)

Specifications:
- Only for electric airsoft guns with gearbox version 2 with switch designed according the Tokyo Marui company
- Versions with universal wiring, which are long enough for all kind of weapons. Simply cut wires to the required length and attach connectors
- On the devices are presoldered high quality 2 black wires 1,5 qmm (AWG16) with silicone insulation, length 300 mm to the motor and 700 mm to the battery. The blue wire 0.25 qmm (AWG24) with a length 300 mm is used for connection anywhere on the red cable
- In package is included 1000 mm red wire 1,5qmm (AWG16) with silicone insulation
- Designed for spring M160 and ROF 25bb/s
- For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox
- Specified for common batteries up to 14V (Ni-xx 8.4 - 12V, lipol 7.4 - 11.1V)
- Current device consumption only 4.5 mA in idle state
- Device increases gun rate of fire and battery holds longer, than with basic wiring
- With active braking in semi fire mode piston isn't partially stretched, spring is fully released, parts in mechabox aren't under strain and nozzle locks hop-up chamber in greater part (depends on ROF)
- In weapons with very high rate of fire (ROF) active break solves multiple shots in semi mode
- The braking effect is the most powerful with high torque motor
- In auto fire mode piston stops in random position due the mechabox design. But it stops much faster with active brake

DEVICE INSTRUCTIONS: installation manual in English is in MEDIA bookmark
PACKING: Device with wiring, screw, pad for screw to keep device in position and installation manual in English

WARNING: Installation of this device leave to expert, who could solder and disassemble airsoft gun. Never user soldering gun!
We can't guarantee 100% compatibility with all gearboxes, but processor unit will fit into standard and common brand's gearboxes without larger modifications.
